Inline Helical Gearmotor durable and solution for industrial automation applications with compact design and power transmission

Name: Inline Helical Gearmotor durable and solution for industrial automation applications with compact design and power transmission
Brand: ZHEJIANG EVERGEAR DRIVE CO.,LTD
SKU: ER27~ER177
Price: 69 USD
Availability: InStock

Brand Name:	EVERGEAR
Model Number:	ER27~ER177
MOQ:	1
Price:	$69
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	9999999

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Power:

0.12KW-200KW

Ratio:

3.4– 285.61

Output Speed:

2.6-529rpm

Output Torque:

110-15300KNm

Input Speed:

500rpm,750rpm,1000rpm,1500rpm,1800rpm

Output Shaft Diameter:

25mm-160mm

Reduction Stage:

Single Stage, Two Stages, Three Stages

Mounting Way:

Foot Mounted, Shaft Mounted, Flange Mounted

Output Way:

Solid Shaft

Weight:

6.2KGS-980KGS

Ambient Temperature:

-40.00 [°C] ~ +40 [°C]

Direction Of Rotation Of Gear Output Shaft:

CW Rotation Or CCW

Packaging Details:

strong wooden case and pallet

Product Description

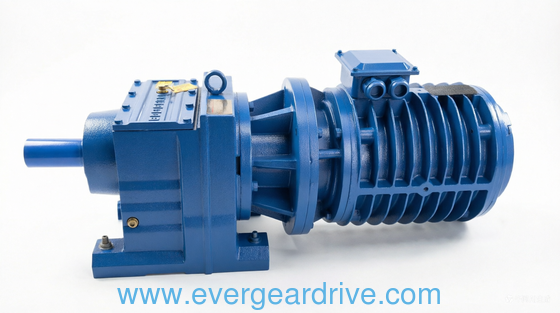

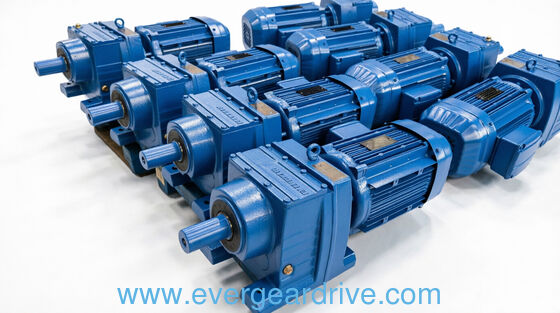

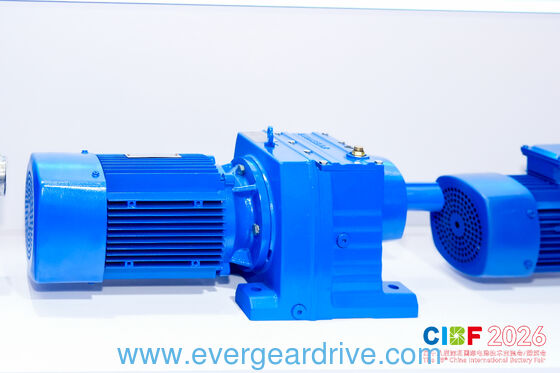

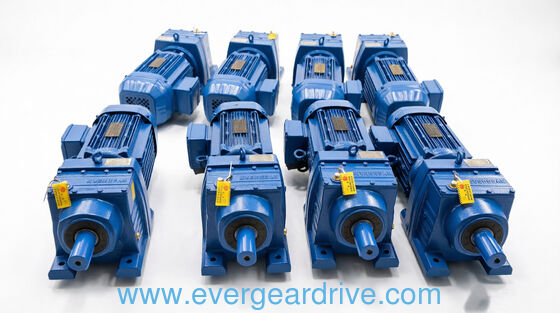

Inline Helical Gearmotor durable and solution for industrial automation applications with compact design and power transmission

High-performance inline helical gear motor designed for industrial applications requiring reliable power transmission and precise speed control.

Technical Specifications

Model Series: ER 27, ER 37, ER 47, ER 57, ER 67, ER 77, ER 87, ER 97, ER 107, ER 137, ER 147, ER 167, ER177

Rotation Direction: CW or CCW

Corrosion Protection: Conservation according to Norm

Coating System: Standard coating, finishing coat for all climatic zones

Color: Blue RAL5010 / RAL7031 or custom colors available

Key Advantages

Modular design system with multi-purpose use of housing and internal components
Progressive ratio of sizes for optimum selection and application matching

Model Selection Guide

Model	ER 27	ER 37	ER 47	ER 57	ER 67	ER 77
Structure Form	ER/ERF/ERM/ERX/ERXF/ER..ER/ER..S..
Input Power (KW)	0.12-3	0.12-3	0.12-5.5	0.12-7.5	0.12-7.5	0.18-11
Ratio	3.37-136	3.4-133.3	3.87-182.6	4.32-183.2	4.32-180.7	5.28-200.9
Permissible Torque (Nm)	110	170	255	380	510	700
Weight (KGS)	8	15	18	23	29	35

Model	ER 87	ER 97	ER 107	ER 137	ER 147	ER 167
Structure Form	ER/ERF/ERM/ERX/ERXF/ER..ER/ER..S..
Input Power (KW)	0.55-22	0.55-37	2.2-55	5.5-75	11-110	11-160
Ratio	5.33-245.7	4.52-280.6	4.98-255.4	5.22-223.2	4.93-162.1	10.43-224.6
Permissible Torque (Nm)	1320	2550	3670	6800	11050	15300
Weight (KGS)	65	102	162	248	420	762
