ERX Series Inline Helical Gear Motor

Name: ERX Series Inline Helical Gear Motor
Brand: ZHEJIANG EVERGEAR DRIVE CO.,LTD
SKU: ERX57~ERX157
Price: 69 USD
Availability: InStock

Brand Name:	EVERGEAR
Model Number:	ERX57~ERX157
MOQ:	1
Price:	$69
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	9999999

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001,ISO14001,ISO24001,CE

Power:

0.18KW-45KW

Ratio:

1.29– 6.62

Output Speed:

226-887rpm

Output Torque:

69-830KNm

Input Speed:

500rpm,750rpm,1000rpm,1500rpm,1800rpm

Output Shaft Diameter:

20mm-60mm

Reduction Stage:

Single Stage

Mounting Way:

Foot Mounted, Shaft Mounted, Flange Mounted

Input Way:

Input Way:Solid Shaft Input, Hand Wheel Input, AC Motor Input, Servo Motor Input

Output Way:

Solid Shaft

Weight:

11KGS-118KGS

Ambient Temperature:

-40.00 [°C] ~ +40 [°C]

Direction Of Rotation Of Gear Output Shaft:

CW Rotation Or CCW

Corrosion Protection:

Conservation Acc. To Norm C1,C2,C3,C4,C5

Coating System:

Standard Coating, Finishing Coat, For All Climatic Zones

Color:

Blue RAL5010 Or Grey RAL7031 Any Color You Need

Packaging Details:

strong wooden case and pallet

Highlight:

0.12KW-200KW power range helical gearmotor

3.4–285.61 ratio inline helical gear motor

Modular design system ERX series gear motor

Product Description

ER Series Inline Helical Gear Motor

High-performance inline helical gear motor with 0.12KW-200KW power range, 3.4–285.61 ratio, and modular design system for industrial applications requiring reliable power transmission and precise speed control.

Product Overview

ERX Series Single Transmission Stage Inline Helical Gear Motor designed for demanding industrial environments with superior performance and reliability.

Technical Specifications

Model Series: ERX series single reduction stage inline helical gear motor
Available Sizes: ERX57, ERX67, ERX77, ERX87, ERX97, ERX107, ERX127, ERX157

Key Advantages

Modular design system with multi-purpose use of housing and internal components
Progressive ratio of sizes for optimum selection and application matching
Wide power range from 0.12KW to 200KW
Precise speed control capabilities

Model Selection Guide

Model	ERX57	ERX67	ERX77	ERX87	ERX97	ERX107	ERX127	ERX157
Structure form	ERX / ERXF
Input power (KW)	0.12-5.5	0.12-7.5	1.1-11	2.2-22	5.5-30	5.5-45	7.5-90	11-132
Ratio	1.29-5.4	1.4-6.2	1.39-5.45	1.4-5.22	1.33-5.67	1.42-6.62	1.56-7	1.63-6.2
Permissible torque (Nm)	69	134	215	405	595	830	1110	1680
Weight (KGS)	11	14	24	41	68	103	150	250

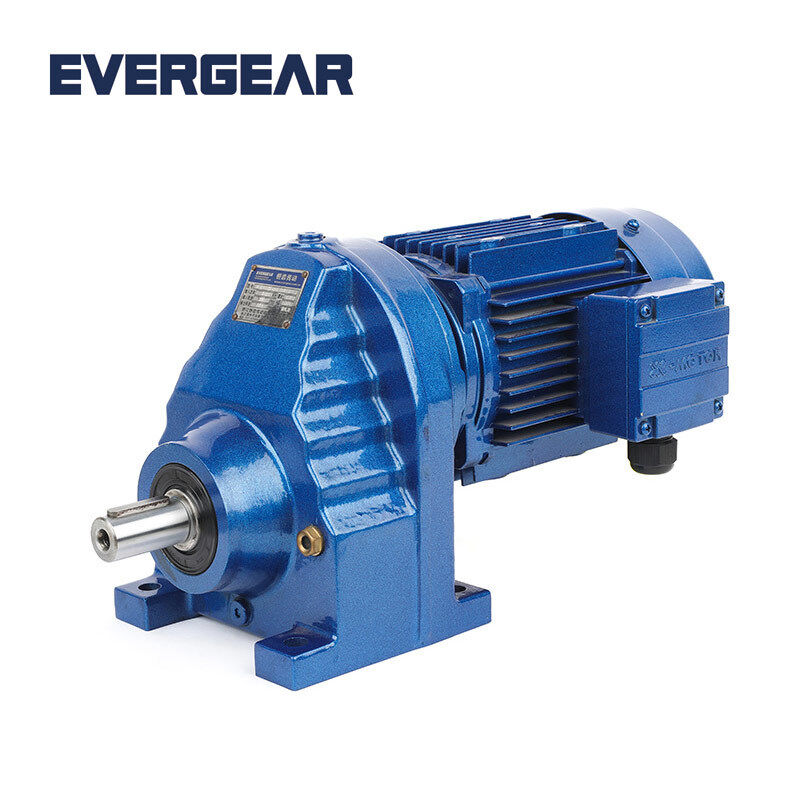

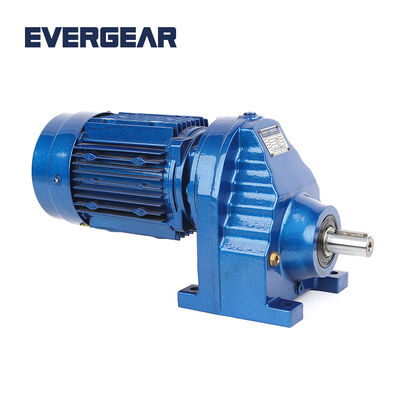

Product Images

Industrial Applications

Conveyor machinery, Crane systems, Packaging equipment, Food industry machinery, Washers, Walking machines, Cropping & shearing machines, Woodworking machinery, Plastic industry machinery, and various other industrial applications.

For detailed technical specifications, custom configurations, or application support, please contact our engineering team online!
