Economical ERF Series Helical Speed Reducer with 0.12KW-200KW Power Range and 3.4–285.61 Ratio for Flange Mounted Applications

Name: Economical ERF Series Helical Speed Reducer with 0.12KW-200KW Power Range and 3.4–285.61 Ratio for Flange Mounted Applications
Brand: ZHEJIANG EVERGEAR DRIVE CO.,LTD
SKU: ERF27~ERF177
Price: 69 USD
Availability: InStock

Brand Name:	EVERGEAR
Model Number:	ERF27~ERF177
MOQ:	1
Price:	$69
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	9999999

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Power:

0.12KW-200KW

Ratio:

3.4– 285.61

Output Speed:

2.6-529rpm

Output Torque:

110-15300KNm

Input Speed:

500rpm,750rpm,1000rpm,1500rpm,1800rpm

Output Shaft Diameter:

25mm-160mm

Reduction Stage:

Single Stage, Two Stages, Three Stages

Mounting Way:

Foot Mounted, Shaft Mounted, Flange Mounted

Output Way:

Solid Shaft

Weight:

6.2KGS-980KGS

Ambient Temperature:

-40.00 [°C] ~ +40 [°C]

Direction Of Rotation Of Gear Output Shaft:

CW Rotation Or CCW

Packaging Details:

strong wooden case and pallet

Highlight:

0.12KW-200KW Power Range Helical Speed Reducer

3.4–285.61 Ratio Inline Helical Gearmotor

Flange Mounted ERF Series Gear Motor

Product Description

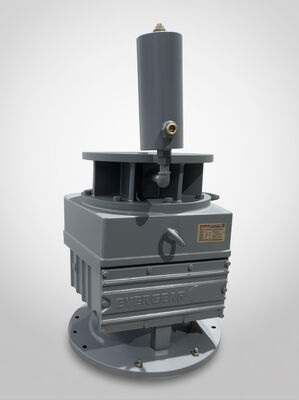

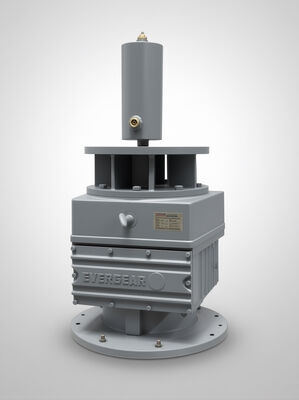

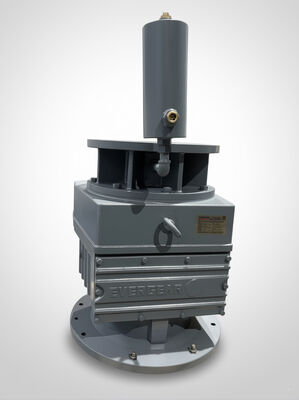

Economical ERF Helical Speed Reducer

High-performance inline helical gear motor designed for industrial applications requiring reliable power transmission and precise speed control. Available in 10:1, 30:1, and 50:1 ratios with flange vertical mount configuration and oil cup lubrication.

Technical Specifications

Model Series: ERF 27, ERF 37, ERF 47, ERF 57, ERF 67, ERF 77, ERF 87, ERF 97, ERF 107, ERF 137, ERF 147, ERF 167, ERF177
Rotation Direction: CW or CCW
Corrosion Protection: Conservation according to Norm
Coating System: Standard coating, finishing coat for all climatic zones
Color: Blue RAL5010 / RAL7031 or custom colors available

Key Advantages

Modular design system with multi-purpose use of housing and internal components
Progressive ratio of sizes for optimum selection and application matching

Model Selection Guide

Model	ERF 27	ERF 37	ERF 47	ERF 57	ERF 67	ERF 77
Structure Form	ER/ERF/ERM/ERX/ERXF/ER..ER/ER..S..
Input Power (KW)	0.12-3	0.12-3	0.12-5.5	0.12-7.5	0.12-7.5	0.18-11
Ratio	3.37-136	3.4-133.3	3.87-182.6	4.32-183.2	4.32-180.7	5.28-200.9
Permissible Torque (Nm)	110	170	255	380	510	700
Weight (KGS)	8	15	18	23	29	35

Model	ERF 87	ERF 97	ERF 107	ERF 137	ERF 147	ERF 167
Structure Form	ER/ERF/ERM/ERX/ERXF/ER..ER/ER..S..
Input Power (KW)	0.55-22	0.55-37	2.2-55	5.5-75	11-110	11-160
Ratio	5.33-245.7	4.52-280.6	4.98-255.4	5.22-223.2	4.93-162.1	10.43-224.6
Permissible Torque (Nm)	1320	2550	3670	6800	11050	15300
Weight (KGS)	65	102	162	248	420	762
