Solid Shaft Helical Inline Gear Drive designed with Self Ventilated or Forced Ventilation Coolingmethod ensuring Operation

The Inline Helical Gearmotor is a highly efficient and robust solution designed to meet the demanding requirements of various industrial applications. Known for its compact design and exceptional performance, the Compact Inline Helical Gearmotor stands out as a preferred choice for engineers and manufacturers looking for reliable and high-torque power transmission components. This gearmotor combines the advantages of helical gearing with an inline configuration to deliver smooth, quiet, and efficient operation in a wide range of machinery and equipment.

One of the most notable features of the Inline Helical Gearmotor is its high torque output. Engineered to provide substantial power in a compact form factor, this gearmotor enables machines to operate with enhanced torque capacity without compromising on size or efficiency. This makes it ideal for applications where space is limited but high torque is essential, such as in conveyors, packaging machines, mixers, and various types of industrial automation equipment.

The Industrial Inline Helical Gear Motor is designed to achieve high efficiency, typically above 90%, which means it converts the input power into mechanical output power with minimal losses. This high efficiency contributes to energy savings and reduced operational costs over time, making the gearmotor a cost-effective component in any industrial setup. The precision engineering of the helical gears ensures smooth meshing and reduced friction, which not only improves efficiency but also extends the lifespan of the gearmotor.

In terms of output, the Inline Helical Speed Reduction Gearmotor features a solid shaft output configuration. This output way ensures reliable and stable transmission of power to the driven equipment, minimizing backlash and enhancing overall system rigidity. The solid shaft design also facilitates easy coupling with various types of load equipment, providing versatility in installation and application.

The output speed range of the Inline Helical Gearmotor is between 226 to 887 revolutions per minute (rpm), allowing it to cater to a wide array of speed requirements in different industrial processes. This speed range, combined with the high torque output, makes the gearmotor suitable for both low-speed, high-torque tasks and moderate-speed applications. The ability to operate efficiently within this speed spectrum makes it a flexible solution for many mechanical power transmission needs.

Moreover, the compact nature of the gearmotor allows for easy integration into existing systems where space constraints are a concern. The Inline Helical Gearmotor’s design ensures that it can be mounted in line with the motor shaft, simplifying the overall system layout and reducing the need for additional components or complex assemblies. This compactness contributes to easier maintenance and lower total installed costs.

Industries ranging from automotive manufacturing to food processing, material handling, and packaging benefit from the reliable performance of the Industrial Inline Helical Gear Motor. Its ability to deliver consistent torque with high efficiency ensures that machines operate smoothly and with minimal downtime. The gearmotor’s durability also means it can withstand harsh industrial environments, including those with high loads and continuous operation.

In summary, the Inline Helical Gearmotor is an excellent choice for applications requiring a compact, high-torque, and efficient power transmission solution. Its high efficiency, typically above 90%, combined with a solid shaft output and a versatile speed range of 226-887rpm, makes it a valuable component in numerous industrial scenarios. Whether used as a standalone drive or integrated into complex machinery, the Inline Helical Speed Reduction Gearmotor delivers reliable performance, longevity, and operational cost savings, making it a smart investment for modern industrial automation and mechanical power transmission needs.

• Product Name: Compact Inline Helical Gearmotor
• Type: Electric Motor
• Output Torque Range: 110-15300 KNm
• Cooling Method: Self-ventilated or Forced Ventilation
• Output Speed Range: 226-887 rpm
• Material: Durable Cast Iron Housing
• Design: Compact Inline Helical Gearmotor for efficient space utilization
• High performance Inline Helical Gear Motor suitable for various industrial applications
• Robust construction ensures long-lasting reliability and durability

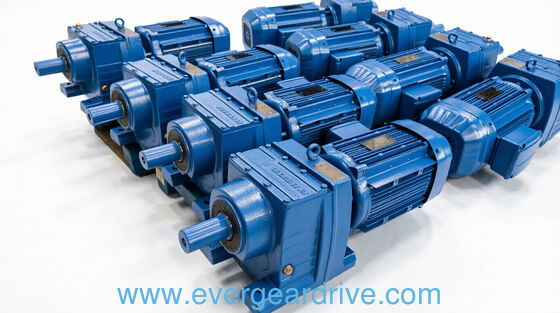

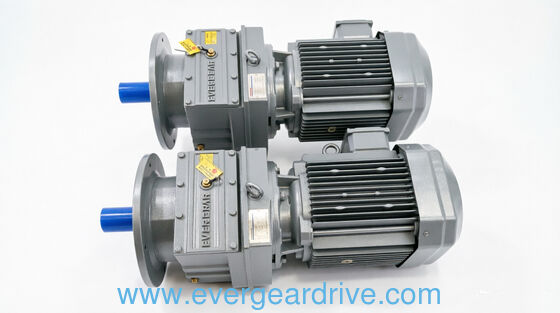

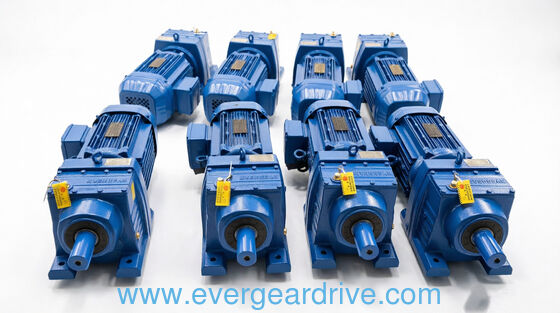

The EVERGEAR Inline Helical Gearmotor, model number ER, is a highly reliable and efficient solution designed for various industrial applications. Manufactured in China, this Compact Inline Helical Gearmotor is renowned for its robust construction and high torque output, making it ideal for demanding environments where consistent performance is crucial. Its solid shaft output design ensures seamless power transmission, which is essential in precision machinery and automation systems.

One of the standout features of the EVERGEAR Helical Gearmotor Inline Type is its corrosion protection, which complies with conservation standards according to Norm C1, C2, C3, C4, and C5. This makes the gearmotor suitable for use in harsh environments, including coastal areas, chemical plants, and outdoor installations where exposure to moisture and corrosive elements is common. Its durable construction helps maintain performance and extend service life, reducing maintenance costs and downtime.

The cooling method of this Compact Inline Helical Gearmotor offers flexibility with options for self-ventilated or forced ventilation. This adaptability ensures optimal thermal management, even under heavy load or continuous operation. Such cooling capabilities are particularly important in applications such as conveyors, mixers, packaging machines, and material handling systems where overheating could lead to equipment failure or reduced efficiency.

With a weight range from 6.2KGS to 980KGS, the EVERGEAR Inline Helical Gearmotor accommodates a wide spectrum of power requirements and mechanical setups. Its compact design allows for easy integration into confined spaces without compromising on torque output, making it an excellent choice for robotics, automated guided vehicles, and industrial automation machinery.

In summary, the Compact Inline Helical Gearmotor by EVERGEAR is perfectly suited for a variety of industrial scenarios including manufacturing plants, agricultural machinery, food processing equipment, and HVAC systems. Its combination of high torque output, corrosion protection, and versatile cooling methods ensures reliable performance across diverse application occasions, enhancing productivity and operational efficiency wherever it is deployed.
