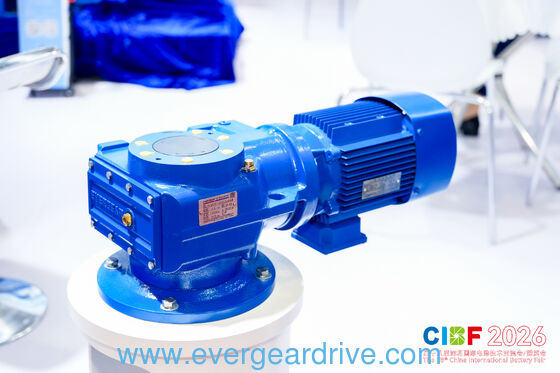

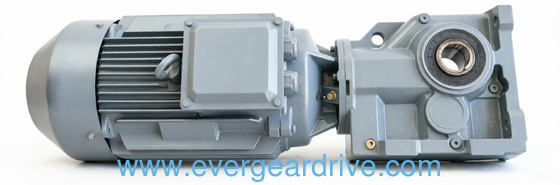

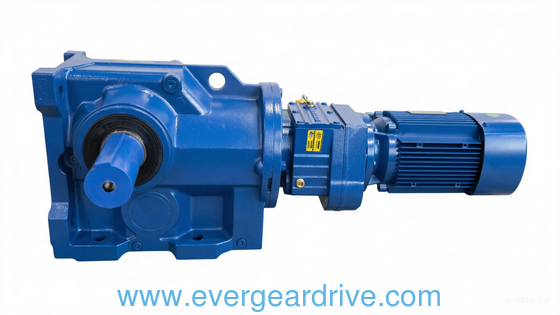

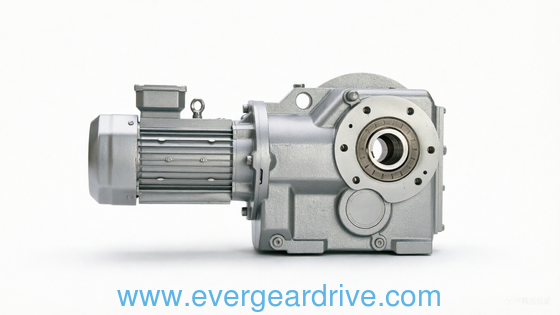

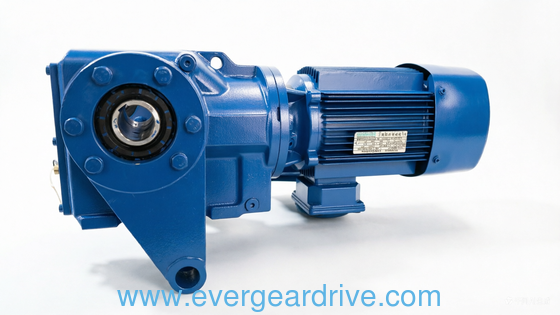

Class F Insulation Helical bevel Geared Motor Offering C5 Corrosion Protection for Enhanced Durability and Long Service Life

The Helical Bevel Gear Motor is a robust and efficient mechanical device designed to provide reliable power transmission in various industrial applications. Constructed from high-quality materials such as cast iron and 20CrMnTi alloy steel, this product ensures exceptional durability and strength, making it suitable for heavy-duty operations and long-term use. The combination of these materials offers excellent resistance to wear, corrosion, and mechanical stress, contributing to the overall longevity and performance of the gear motor.

This Helical Bevel Gear Motor features a versatile assemble type, available in both foot mounted and flange mounted configurations. This flexibility in mounting options allows for easy integration into different machinery setups, accommodating space constraints and installation requirements. Whether your application demands a stable base installation or a compact flange mounting, this gear motor adapts seamlessly to meet your needs.

One of the key performance characteristics of this bevel gear operator is its input speed capacity, which is designed to operate efficiently at speeds less than 1800 revolutions per minute (r/min). This limitation ensures optimal torque transmission and minimizes wear on internal components, thereby enhancing the operational lifespan of the unit. The precise engineering of the helical bevel gear reducer inside the motor allows for smooth and quiet operation, reducing noise and vibration during use.

The output speed range of the Helical Bevel Gear Motor spans from as low as 0.1 r/min up to 270 r/min. This wide range of output speeds provides great versatility, enabling the gear motor to be used in numerous applications requiring different speed and torque combinations. Whether you need slow, controlled motion or faster rotational speeds, this gear reducer can be tailored to deliver the exact performance required by your machinery.

In terms of weight, the product line covers a broad spectrum from 19 kilograms to as much as 1669 kilograms, accommodating a variety of power and size requirements. This weight range reflects the scalability of the helical bevel gear reducer design, allowing customers to select a model that best fits the size and capacity demands of their specific application. Despite the variation in size and weight, all models maintain consistent quality and performance standards.

As a bevel gear operator, the Helical Bevel Gear Motor is engineered to provide precise angular power transmission between intersecting shafts. The helical bevel gear design combines the benefits of helical gears and bevel gears, resulting in improved load capacity, smoother operation, and higher efficiency compared to traditional gear types. This makes the helical bevel gear reducer an ideal choice for applications in industries such as manufacturing, material handling, conveyors, and heavy machinery.

Overall, the Helical Bevel Gear Motor stands out as a reliable and adaptable solution for power transmission needs. Its robust construction using cast iron and 20CrMnTi ensures mechanical strength and durability, while the flexibility in mounting options and wide input and output speed ranges enhance its applicability across diverse industrial sectors. Whether used as a standalone bevel gear operator or integrated within complex mechanical systems, this helical bevel gear reducer delivers consistent performance and dependable service, making it a valuable component in optimizing operational efficiency and productivity.

• Product Name: Helical Bevel Gear Motor
• Corrosion Protection: Conservation according to Norms C1, C2, C3, C4, and C5
• Output Speed Range: 0.1 to 270 r/min
• Insulation Class: Class F for enhanced thermal resistance
• Input Speed: Less than 1800 r/min
• Output Torque: Up to 1500 Nm for high performance
• Type: Bevel Gear Reducer with high efficiency
• Design: Helical Bevel Gear Reducer ensuring smooth and quiet operation
• Application: Ideal for use as a Helical Bevel Gear Reducer in various mechanical systems

The EVERGEAR Helical Bevel Gear Motor, model EK, originating from China, is a highly efficient and reliable solution designed to meet diverse industrial needs. With an input speed of less than 1800r/min and constructed with premium 20CrMnTi gear material, this Helical Bevel Gear Motor ensures durability and optimal performance even under demanding conditions. The gear motor features a protection class of IP54/IP55, safeguarding it from dust and water ingress, while its Class F insulation guarantees long-lasting electrical reliability. With efficiency levels reaching up to 95%, the EVERGEAR Helical Bevel Gear Motor stands out as an energy-saving choice for various mechanical applications.

The Helical Bevel Gear Motor is especially suited for scenarios requiring torque transmission at right angles with smooth operation and minimal noise. It is commonly employed in conveyor systems, packaging machinery, material handling equipment, and automated assembly lines. Industries such as manufacturing, automotive, food processing, and logistics greatly benefit from the precision and robustness provided by the bevel gear reducer integrated into the motor. Its compact design allows for easy integration into tight spaces without compromising on power output or reliability.

In addition to industrial machinery, the EVERGEAR Bevel Gear Reducer finds application in agricultural equipment, where consistent performance under varying loads is critical. It is also ideal for use in robotics and automation systems, where accurate speed control and high efficiency are paramount. The versatile nature of the Helical Bevel Gear Motor makes it well-suited for elevators, cranes, and other lifting devices that demand dependable torque transmission and enhanced safety standards.

Moreover, the Helical Bevel Gear Motor’s robust construction and protective features make it a preferred choice in environments exposed to dust, moisture, and moderate mechanical stress. Its ability to maintain high efficiency while operating at input speeds below 1800r/min contributes to energy savings and reduced operational costs. Whether deployed in new installations or as a replacement in existing systems, the EVERGEAR EK model ensures long service life and consistent performance.

Overall, the EVERGEAR Helical Bevel Gear Motor and Bevel Gear Reducer are engineered to deliver superior performance across a wide range of applications. Their combination of high-quality materials, efficient design, and protective features ensures reliable operation in various industrial and commercial scenarios, making them an indispensable component in modern mechanical power transmission solutions.
