EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque

Name: EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque
Brand: ZHEJIANG EVERGEAR DRIVE CO.,LTD
SKU: EF37~EF157
Price: 59 USD
Availability: InStock

Brand Name:	EVERGEAR
Model Number:	EF37~EF157
MOQ:	1
Price:	$59
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	99999999

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001,ISO14001,ISO24001,CE

Power Range:

0.18KW-200KW

Ratio:

4.81-259.74

Output Speed:

0.12-310rpm

Output Torque:

200N.m-18000N.m

Input Speed:

500rpm,750rpm,1000rpm,1500rpm,1800rpm

Output Shaft Diameter:

25mm-120mm

Mounting Way:

Foot Mounted, Shaft Mounted, Flange Mounted,shrink Disc Mounted,Buffer Rubber Mount,Backstop Mount

Input Way:

Solid Shaft Input, Hand Wheel Input, AC Motor Input, Servo Motor Input

Output Way:

Solid Shaft , Two Side Output Shaft ,hollow Shaft, Shrink Disc Etc

Weight:

19KGS-679KGS

Ambient Temperature:

-15.00 [°C] ~ +40 [°C]

Direction Of Rotation Of Gear Output Shaft:

CW Rotation Or CCW

Corrosion Protection:

Conservation Acc. To Norm C1,C2,C3,C4,C5

Coating System:

Standard Coating, Finishing Coat, For All Climatic Zones

Color:

Blue RAL5010 /Grey RAL7031 Or Any Color You Need

Packaging Details:

Export Strong wooden case and pallet

Highlight:

0.18KW-200KW power range helical gear motor

200N.m-18000N.m output torque parallel shaft gear motor

C1-C5 corrosion protection EFA series gear motor

Product Description

EFA Series Parallel Shaft Helical Gear Motor with Hollow Shaft

The EFA Series parallel shaft helical gear motor delivers reliable power transmission with high efficiency and durability for demanding industrial applications.

Available Models

EFA37, EFA47, EFA57, EFA67, EFA77, EFA87, EFA97, EFA107, EFA127, EFA157

Technical Specifications

Model	EFA 37	EFA 47	EFA 57	EFA 67	EFA 77
Structure Form	EF/EFAB/EFF/EFA/EFAF/EFAZ	EF/EFAB/EFF/EFA/EFAF/EFAZ	EF/EFAB/EFF/EFA/EFAF/EFAZ	EF/EFAB/EFF/EFA/EFAF/EFAZ	EF/EFAB/EFF/EFA/EFAF/EFAZ
Input Power (KW)	0.18-3	0.18-3	0.18-5.5	0.18-5.5	0.18-11
Ratio	4.81-111.63	6.85-148.5	4.92-199.7	5.07-195.1	5.7-286.59
Permissible Torque (Nm)	200	400	600	820	1500
Weight (KGS)	19	25	29	35	62.5

Model	EFA 87	EFA 97	EFA 107	EFA 127	EFA 157
Structure Form	EF/EFAB/EFF/EFA/EFAF/EFAZ	EF/EFAB/EFF/EFA/EFAF/EFAZ	EF/EFAB/EFF/EFA/EFAF/EFAZ	EF/EFAB/EFF/EFA/EFAF/EFAZ	EF/EFAB/EFF/EFA/EFAF/EFAZ
Input Power (KW)	0.37-22	0.55-30	0.75-45	4-90	5.5-200
Ratio	5.31-268.37	4.36-227.85	5.5-248.6	5.11-172.24	11.92-259.74
Permissible Torque (Nm)	3000	4300	7840	12000	18000
Weight (KGS)	109	182	259	431	679

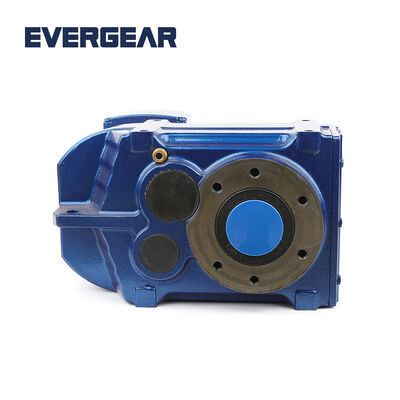

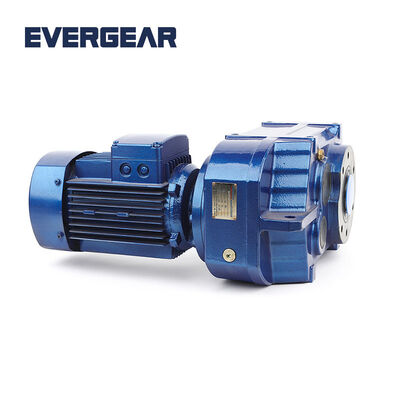

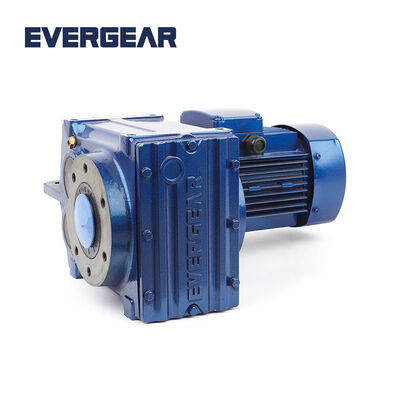

Product Images

Gear oil quantity filled with gearbox: ISO VG220/320 Mineral Oil or Synthetic Oil EFA Series Parallel Shaft Helical Gear Motor with 0.18KW-200KW Power Range and 200N.m-18000N.m Output Torque 7

For detailed technical data and custom specifications, please contact our engineering team for professional assistance.
