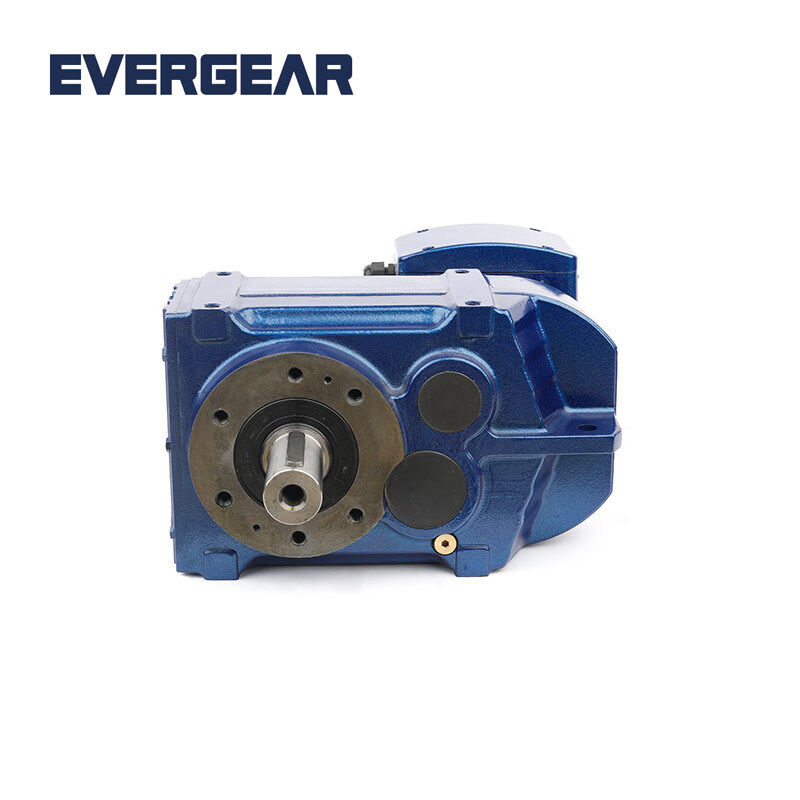

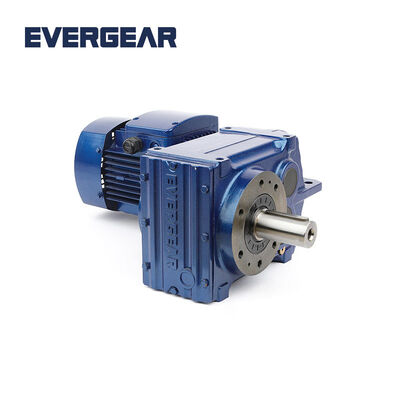

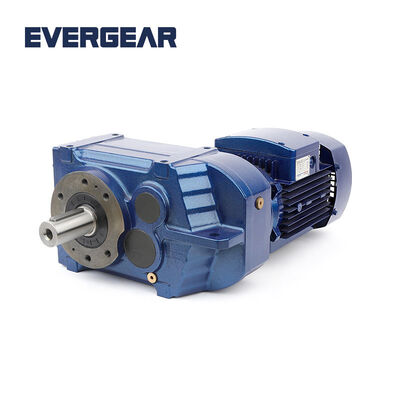

EF series parallel shaft helical gear motor

Name: EF series parallel shaft helical gear motor
Brand: ZHEJIANG EVERGEAR DRIVE CO.,LTD
SKU: EF37~EF157
Price: 59 USD
Availability: InStock

Brand Name:	EVERGEAR
Model Number:	EF37~EF157
MOQ:	1
Price:	$59
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	99999999

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001,ISO14001,ISO24001,CE

Power Range:

0.18KW-200KW

Ratio:

4.81-259.74

Output Speed:

0.12-310rpm

Output Torque:

200N.m-18000N.m

Input Speed:

500rpm,750rpm,1000rpm,1500rpm,1800rpm

Output Shaft Diameter:

25mm-120mm

Mounting Way:

Foot Mounted, Shaft Mounted, Flange Mounted,shrink Disc Mounted,Buffer Rubber Mount,Backstop Mount

Input Way:

Solid Shaft Input, Hand Wheel Input, AC Motor Input, Servo Motor Input

Output Way:

Solid Shaft , Two Side Output Shaft ,hollow Shaft, Shrink Disc Etc

Weight:

19KGS-679KGS

Ambient Temperature:

-15.00 [°C] ~ +40 [°C]

Direction Of Rotation Of Gear Output Shaft:

CW Rotation Or CCW

Corrosion Protection:

Conservation Acc. To Norm C1,C2,C3,C4,C5

Coating System:

Standard Coating, Finishing Coat, For All Climatic Zones

Color:

Blue RAL5010 /Grey RAL7031 Or Any Color You Need

Packaging Details:

Export Strong wooden case and pallet

Highlight:

200N.m-18000N.m output torque helical gear motor

0.18KW-200KW power range EF series gear motor

C1-C5 corrosion protection parallel shaft gear motor

Product Description

EF Series Parallel Shaft Helical Gear Motor

Product Overview

The EF Series parallel shaft helical gear motor offers reliable power transmission with high efficiency and durability for industrial applications.

Available Models

EF37, EF47, EF57, EF67, EF77, EF87, EF97, EF107, EF127, EF157

Technical Specifications

Model	EF 37	EF 47	EF 57	EF 67	EF 77
Structure Form	EF/EFAB/EFF/EFA/EFAF/EFAZ
Input Power (KW)	0.18-3	0.18-3	0.18-5.5	0.18-5.5	0.18-11
Ratio	4.81-111.63	6.85-148.5	4.92-199.7	5.07-195.1	5.7-286.59
Permissible Torque (Nm)	200	400	600	820	1500
Weight (KGS)	19	25	29	35	62.5

Model	EF 87	EF 97	EF 107	EF 127	EF 157
Structure Form	EF/EFAB/EFF/EFA/EFAF/EFAZ
Input Power (KW)	0.37-22	0.55-30	0.75-45	4-90	5.5-200
Ratio	5.31-268.37	4.36-227.85	5.5-248.6	5.11-172.24	11.92-259.74
Permissible Torque (Nm)	3000	4300	7840	12000	18000
Weight (KGS)	109	182	259	431	679
