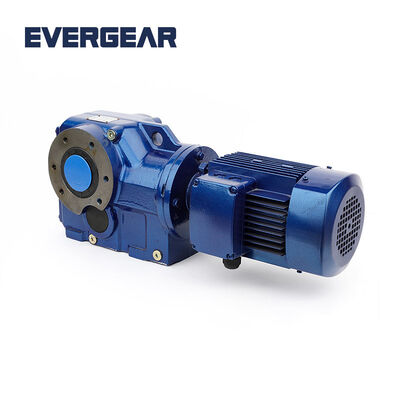

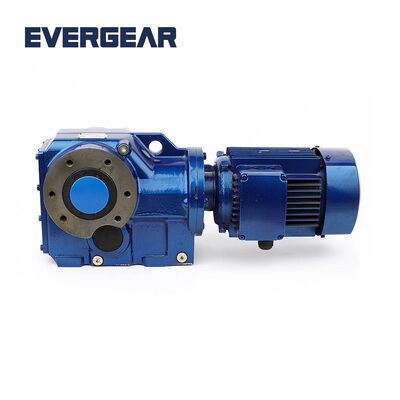

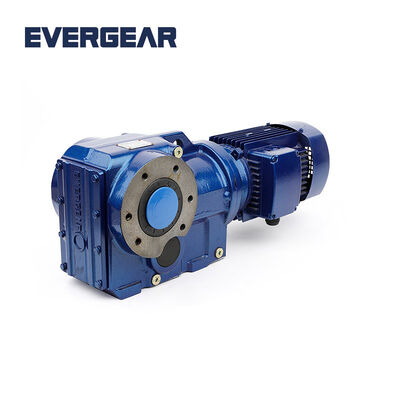

EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft

Name: EKA Series Helical Bevel Gear Motor with 0.18KW-200KW Power Range and 5-33000 Ratio Featuring Hollow Shaft
Brand: ZHEJIANG EVERGEAR DRIVE CO.,LTD
SKU: EK37~EK187
Price: 69 USD
Availability: InStock

Brand Name:	EVERGEAR
Model Number:	EK37~EK187
MOQ:	1
Price:	$69
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	99999999

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Power Range:

0.18KW-200KW

Ratio:

5-33000

Output Speed:

2.6-360rpm

Output Torque:

200N.m-50000N.m

Input Speed:

500rpm,750rpm,1000rpm,1500rpm,1800rpm.

Output Shaft Diameter:

25mm-190mm

Reduction Stage:

Two Transmission Stages, Three Transmission Stages

Mounting Way:

Foot Mounted, Shaft Mounted, Flange Mounted，torque Arm Mount,shrink Disc Mount,spline Shaft Mount

Input Way:

Solid Shaft Input, Hand Wheel Input, AC Motor Input, Servo Motor Input

Output Way:

Solid Shaft , Hollow Shaft,shrink Disc,spline Shaft

Weight:

19KGS-1669KGS

Ambient Temperature:

-15.00 [°C] ~ +40 [°C]

Direction Of Rotation Of Gear Output Shaft:

CW Rotation Or CCW

Corrosion Protection:

Conservation Acc. To Norm C1,C2,C3,C4,C5

Coating System:

Standard Coating, Finishing Coat, For All Climatic Zones

Color:

Blue RAL5010 /Grey RAL7031 Or Any Color You Need

Packaging Details:

Export strong wooden case and pallet

Highlight:

0.18KW-200KW Power Range Helical Bevel Gear Motor

5-33000 Ratio Inline Helical Gearmotor

Hollow Shaft Gear Motor

Product Description

EKA Series Helical Bevel Gear Motor with Hollow Shaft

The EKA series helical bevel gear motor delivers reliable power transmission with high efficiency and exceptional durability for demanding industrial applications. Featuring a hollow shaft design for flexible installation and integration.

Available Models

EKA37, EKA47, EKA57, EKA67, EKA77, EKA87, EKA97, EKA107, EKA127, EKA157, EKA167, EKA187

Technical Specifications

Model	EKA 37	EKA 47	EKA 57	EKA 67	EKA 77	EKA 87
Structure Form	EK/EKAB/EKF/EKAF/EKA/EKAT/EKAZ/EK..ER/EK..S
Input Power (KW)	0.18-3	0.18-3	0.18-5.5	0.18-5.5	0.25-11	0.37-22
Ratio	5.14-106.3	5.83-128.33	7.71-146.36	7.12-142.31	8.98-191.87	8.78-195.55
Permissible Torque (Nm)	200	400	600	820	1550	2700
Weight (KGS)	19	26	29	33.5	62	103

Model	EKA 97	EKA 107	EKA 127	EKA 157	EKA 167	EKA187
Structure Form	EK/EKAB/EKF/EKAF/EKA/EKAT/EKAZ/EK..ER/EK..S
Input Power (KW)	0.75-30	1.5-45	4-90	5.5-200	7.5-200	15-200
Ratio	10.19-166.25	8.48-151.36	8.41-141.28	12.92-138.57	20.59-158.88	16.53-174.72
Permissible Torque (Nm)	4300	8000	13000	18000	32000	50000
Weight (KGS)	170	275	437	679	1110	1736
