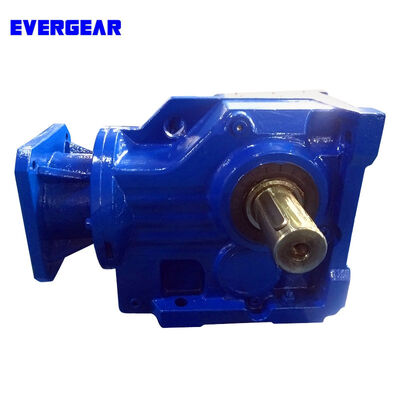

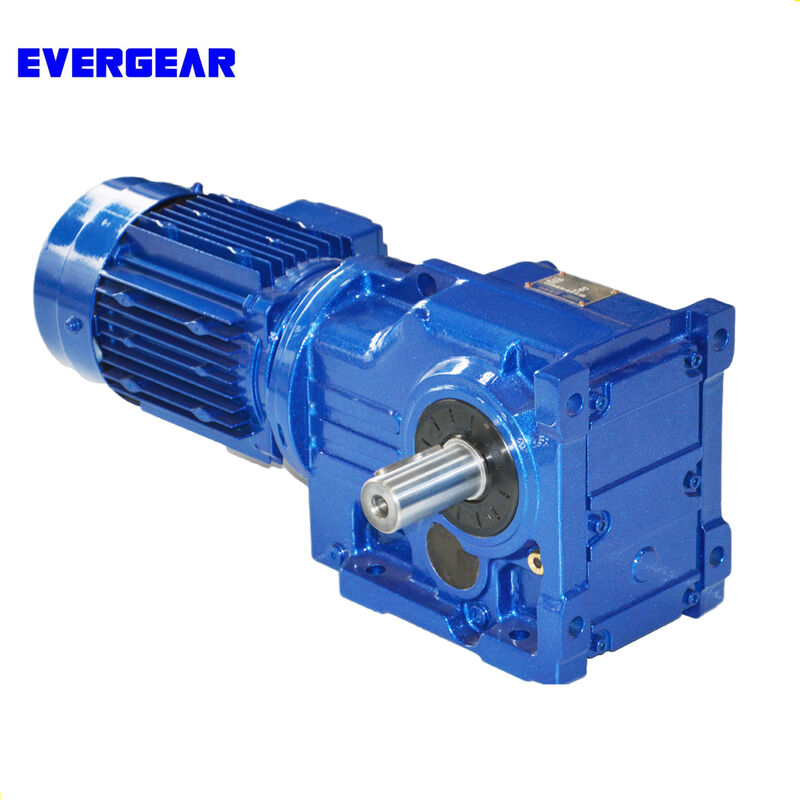

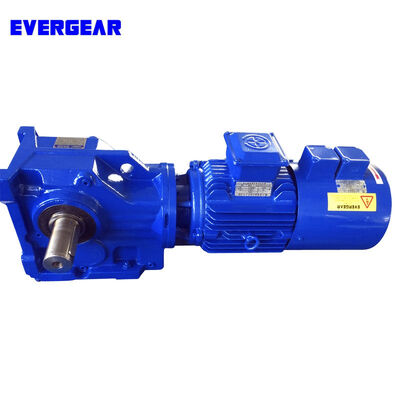

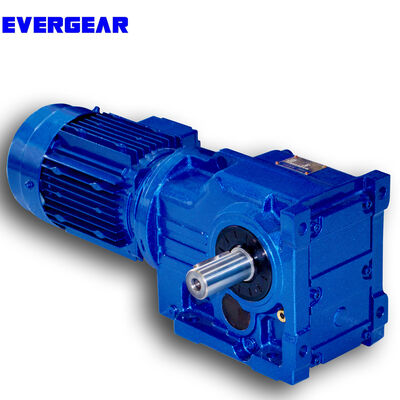

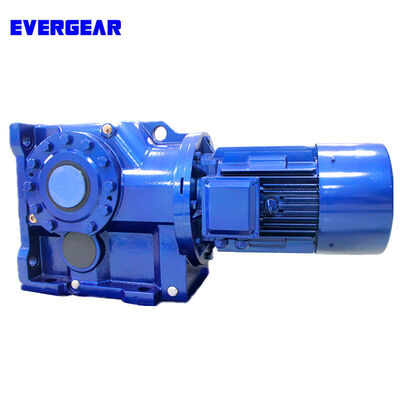

EK Series Helical Bevel Gear Motor

Name: EK Series Helical Bevel Gear Motor
Brand: ZHEJIANG EVERGEAR DRIVE CO.,LTD
SKU: EK37~EK187
Price: 69 USD
Availability: InStock

Brand Name:	EVERGEAR
Model Number:	EK37~EK187
MOQ:	1
Price:	$69
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	99999999

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Power Range:

0.18KW-200KW

Ratio:

5-33000

Output Speed:

2.6-360rpm

Output Torque:

200N.m-50000N.m

Input Speed:

500rpm,750rpm,1000rpm,1500rpm,1800rpm.

Output Shaft Diameter:

25mm-190mm

Reduction Stage:

Two Transmission Stages, Three Transmission Stages

Mounting Way:

Foot Mounted, Shaft Mounted, Flange Mounted，torque Arm Mount,shrink Disc Mount,spline Shaft Mount

Input Way:

Solid Shaft Input, Hand Wheel Input, AC Motor Input, Servo Motor Input

Output Way:

Solid Shaft , Hollow Shaft,shrink Disc,spline Shaft

Weight:

19KGS-1669KGS

Ambient Temperature:

-15.00 [°C] ~ +40 [°C]

Direction Of Rotation Of Gear Output Shaft:

CW Rotation Or CCW

Corrosion Protection:

Conservation Acc. To Norm C1,C2,C3,C4,C5

Coating System:

Standard Coating, Finishing Coat, For All Climatic Zones

Color:

Blue RAL5010 /Grey RAL7031 Or Any Color You Need

Packaging Details:

Export strong wooden case and pallet

Highlight:

0.18KW-200KW power range helical bevel gear motor

5-33000 ratio inline helical gearmotor

200N.m-50000N.m output torque EK series gear motor

Product Description

EK Series Helical Bevel Gear Motor

Product Overview

The EK series helical bevel gear motor offers reliable power transmission with high efficiency and durability for industrial applications.

Available Models

EK37, EK47, EK57, EK67, EK77, EK87, EK97, EK107, EK127, EK157, EK167, EK187

Technical Specifications

Model	EK 37	EK 47	EK 57	EK 67	EK 77	EK 87
Structure Form	EK/EKAB/EKF/EKAF/EKA/EKAT/EKAZ/EK..ER/EK..S
Input Power (KW)	0.18-3	0.18-3	0.18-5.5	0.18-5.5	0.25-11	0.37-22
Ratio	5.14-106.3	5.83-128.33	7.71-146.36	7.12-142.31	8.98-191.87	8.78-195.55
Permissible Torque (Nm)	200	400	600	820	1550	2700
Weight (KGS)	19	26	29	33.5	62	103

Model	EK 97	EK 107	EK 127	EK 157	EK 167	EK 187
Structure Form	EK/EKAB/EKF/EKAF/EKA/EKAT/EKAZ/EK..ER/EK..S
Input Power (KW)	0.75-30	1.5-45	4-90	5.5-200	7.5-200	15-200
Ratio	10.19-166.25	8.48-151.36	8.41-141.28	12.92-138.57	20.59-158.88	16.53-174.72
Permissible Torque (Nm)	4300	8000	13000	18000	32000	50000
Weight (KGS)	170	275	437	679	1110	1736
