TA Series Helical Shaft Mounted Gear Reducer with 0.75KW-200KW Power Range, Hollow Shaft Output, and Modular Design System

Name: TA Series Helical Shaft Mounted Gear Reducer with 0.75KW-200KW Power Range, Hollow Shaft Output, and Modular Design System
Brand: ZHEJIANG EVERGEAR DRIVE CO.,LTD
SKU: TA35, TA40, TA45, TA50, TA60, TA70, TA80, TA100, TA125
Price: 99 USD
Availability: InStock

Brand Name:	EVERGEAR
Model Number:	TA35, TA40, TA45, TA50, TA60, TA70, TA80, TA100, TA125
MOQ:	10
Price:	$99
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	99999999

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001,ISO14001,ISO24001,CE

Power Range:

0.75KW-200KW

Ratio:

5– 31

Output Speed:

2.6-529rpm

Output Torque:

180-17000Nm

Input Speed:

750rpm,1000rpm,1500rpm,1800rpm

Output Shaft Diameter:

35mm-135mm

Reduction Stage:

Two Transmission Stages

Mounting Way:

Shaft Mounted With Torque Arm

Output Way:

Hollow Shaft

Weight:

27KGS-495KGS

Ambient Temperature:

-15.00 [°C] ~ +40 [°C]

Direction Of Rotation Of Gear Output Shaft:

CW Rotation Or CCW

Corrosion Protection:

Conservation Acc. To Norm C1,C2,C3,C4,C5

Coating System:

Standard Coating, Finishing Coat, For All Climatic Zones

Color:

Blue RAL5010 /Grey RAL7031 Or Any Color You Need

Packaging Details:

Export wooden cases and pallets

Highlight:

0.75KW-200KW power range helical shaft mounted gear reducer

Hollow shaft output shaft mount gearbox

Modular design system TA series gear reducer

Product Description

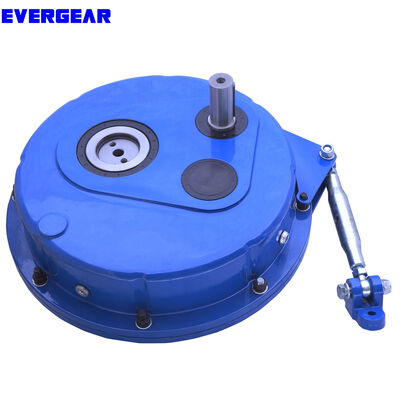

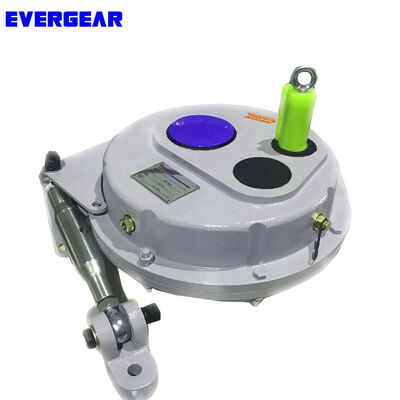

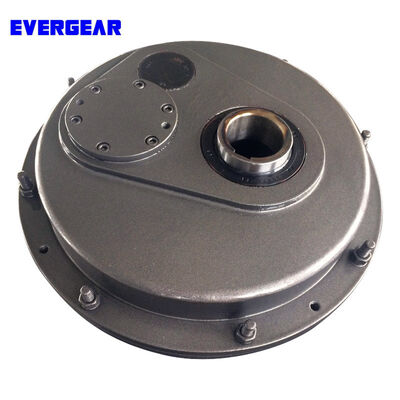

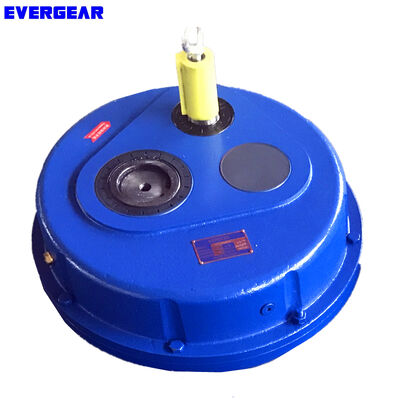

TA Series Helical Shaft Mounted Gear Reducer

Product Overview

Model: TA series helical shaft mounted gear reducer

Available Sizes: TA35, TA40, TA45, TA50, TA60, TA70, TA80, TA100, TA125

Key Advantages

Modular design system for multi-purpose use of housing and internal components
Progressive ratio of sizes for optimum selection and application matching

Technical Specifications

Model	TA35	TA40	TA45	TA50	TA60	TA70
Structure Form	TA with torque arm / TA with backstop
Output Shaft Diameter (mm)	35	40 / 45	45 / 50 / 55	50 / 55 / 60	60 / 70	70 / 85
Ratio	5 / 7 / 10 / 12.5 / 15 / 20 / 25 / 31
Permissible Torque (Nm)	420	950	1400	2300	3600	5100
Weight (KGS)	27 / 30	36 / 40	45 / 50	72 / 78	110 / 125	140 / 151

Model	TA80	TA100	TA125
Structure Form	TA with torque arm / TA with backstop
Output Shaft Diameter (mm)	80 / 100	100 / 125	125 / 135
Ratio	5 / 7 / 10 / 12.5 / 15 / 20 / 25 / 31
Permissible Torque (Nm)	7000	11000	17000
Weight (KGS)	195 / 210	340 / 360	420 / 495

For additional technical data and specifications, please contact us online for comprehensive support.
