EQ Series Right Angle Planetary Gear Reducer with Modular Design for High Power Crushing Applications

EQ Series Right Angle Planetary Gear Reducer with Modular Design for High Power Crushing Applications

Brand Name:	EVERGEAR
Model Number:	EQ
MOQ:	1
Price:	$199
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	99999

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001,ISO14001,ISO24001,CE

Power Range::

0.19KW-12934KW

Ratio:

25 – 4000

Output Torque:

22-2600KNm

Input Speed:

500rpm,750rpm,1000rpm,1500rpm,1800rpm

Input Shaft Diameter:

30mm-190mm

Output Shaft Diameter:

120mm-640mm

Reduction Stage:

Two Transmission Stages, Three Transmission Stages, Four Transmission Stages

Mounting Way:

Shaft Mounted, Gear Housing Base, Motor Braket, Motor Swing Base, Torque Arm Supporting,Involute Spline Shaft

Output Way:

Solid Shaft ,hollow Shaft, Hollow Shaft For Shrink Disk ,Involute Spline Shaft

Ambient Temperature:

-40.00 [°C] ~ +50 [°C]

Direction Of Rotation Of Gear Output Shaft:

CW Rotation Or CCW

Corrosion Protection:

Conservation Acc. To Norm C1,C2,C3,C4,C5

Coating System:

Standard Coating, Finishing Coat, For All Climatic Zones

Lubrication:

Dip Lubrication, Splash Lubrication, Pump Lubrication

Shaft Key:

Parallel Shaft Key And Keyway ,shrink Disk,Involute Spline

Color:

Blue RAL5010 /Grey RAL7031 Or Any Color You Need

Packaging Details:

Export strong wooden case and pallet

Highlight:

High Power Crushing Planetary Gear Reducer

Modular Design Planetary Gearbox

Right Angle Gear Speed Reducer

Product Description

EQ Series Right Angle Planetary Gear Reducer with High Power Crushing Application

The EQ series planetary gear reducer offers advanced performance and flexibility for industrial applications with modular design and optimized engineering, specifically designed for high-power crushing machines.

Available Model Sizes

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

Key Advantages

Modular design system for multi-purpose use of housing and internal components
Progressive ratio of sizes for optimum selection and application matching
Improved noise reduction through grounded bevel gear teeth and noise-absorbing housings

Gearbox Overview

EQ series features gear speed reducers with one or two free wheels
Flexible combination types with modular design for versatile configurations
Compact design with small volume, light weight, wide transmission ratio range, high efficiency, and stable operation
High-rigidity ductile iron housing with superior anti-shock performance
Input modes: coaxial type, parallel shaft type, right angle shaft type, right angle parallel shaft type
Output modes: expansion plate hollow shaft, involute spline hollow shaft (DIN standard), involute spline hollow shaft (national standard), flat key solid shaft, involute spline solid shaft (DIN standard), involute spline solid shaft (national standard)

Working Environment Specifications

Operating temperature range: -40°C to 50°C (lubrication heating required below 0°C)
Maximum operating altitude: 1,000 meters above sea level
Relative humidity: less than 85%
Maximum input rotational speed: 1800 RPM
Suitable for normal and reverse rotation applications
Universal industrial compatibility across all industry sectors
Consult manufacturer for specialized operating conditions

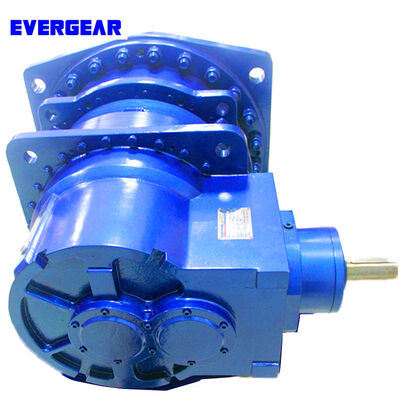

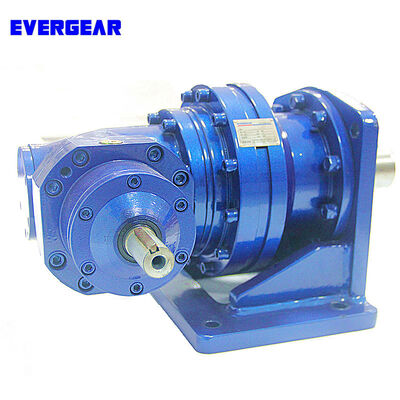

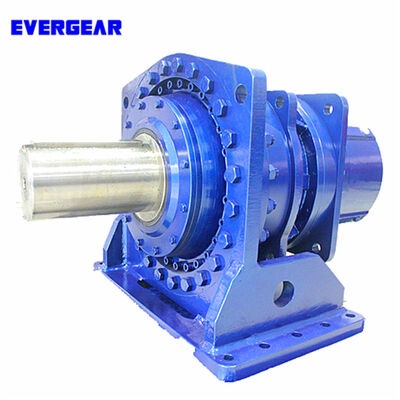

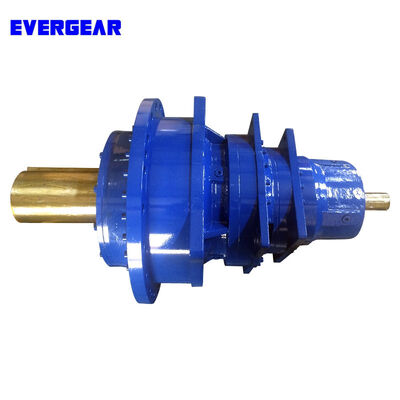

Product Images
