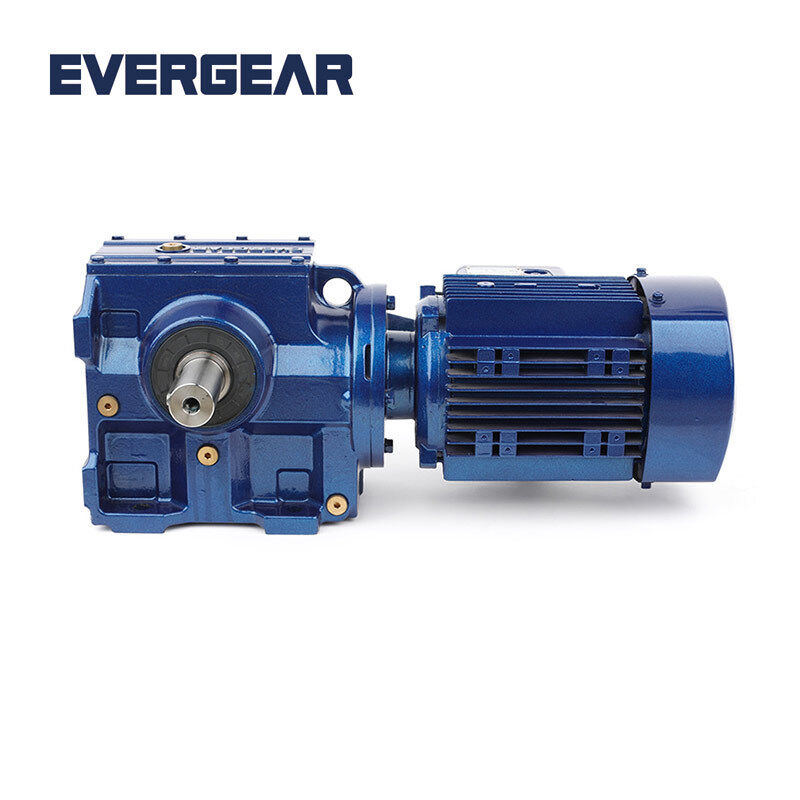

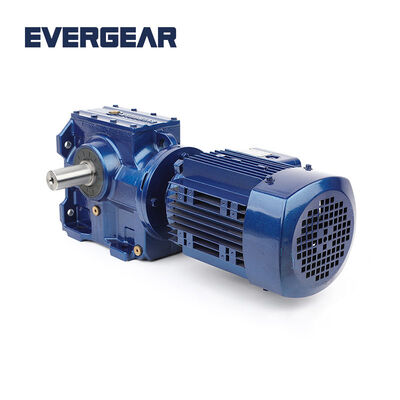

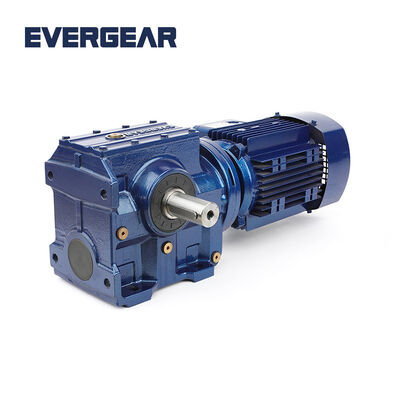

ES series helical worm gear motor

Name: ES series helical worm gear motor
Brand: ZHEJIANG EVERGEAR DRIVE CO.,LTD
SKU: ES37~ES97
Price: 59 USD
Availability: InStock

Brand Name:	EVERGEAR
Model Number:	ES37~ES97
MOQ:	1
Price:	$59
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	99999999

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001,ISO14001,ISO24001,CE

Power Range:

0.18KW-22KW

Ratio:

4.81-259.74

Output Speed:

0.3-150rpm

Output Torque:

92N.m-4000N.m

Input Speed:

500rpm,750rpm,1000rpm,1500rpm,1800rpm

Output Shaft Diameter:

20mm-70mm

Mounting Way:

Foot Mounted, Shaft Mounted, Flange Mounted，torque Arm Mount,shrink Disc Mount,spline Shaft Mount

Input Way:

Solid Shaft Input, Hand Wheel Input, AC Motor Input, Servo Motor Input

Output Way:

Solid Shaft , Hollow Shaft,shrink Disc,spline Shaft

Weight:

11KGS-158KGS

Ambient Temperature:

-15.00 [°C] ~ +40 [°C]

Direction Of Rotation Of Gear Output Shaft:

CW Rotation Or CCW

Corrosion Protection:

Conservation Acc. To Norm C1,C2,C3,C4,C5

Coating System:

Standard Coating, Finishing Coat, For All Climatic Zones

Color:

Blue RAL5010 /Grey RAL7031 Or Any Color You Need

Packaging Details:

Export Strong wooden case and pallet

Highlight:

0.18KW-22KW power range helical worm gear motor

92N.m-4000N.m output torque gear motor

Multiple mounting options worm gear reducer

Product Description

ES Series Helical Worm Gear Motor

Product Overview

The ES Series helical worm gear motor combines helical and worm gear technologies to deliver high torque output with exceptional efficiency and reliability for industrial applications.

Available Models

ES37
ES47
ES57
ES67
ES77
ES87
ES97

Technical Specifications

Model	ES37	ES47	ES57	ES67
Structure Form	ES/ESA/ESF/ESAF/ESAT/ESAZ
Input Power (KW)	0.18-0.75	0.18-1.5	0.18-2.2	0.18-4
Ratio	9.24-167.2	11.46-210.57	10.78-201	11.66-224.65
Permissible Torque (Nm)	92	170	295	520
Weight (KGS)	11	17	22	29

Model	ES77	ES87	ES97
Structure Form	ES/ESA/ESF/ESAF/ESAT/ESAZ
Input Power (KW)	0.37-7.5	0.37-15	0.75-22
Ratio	10.94-240	10.29-308	10.13-280
Permissible Torque (Nm)	1270	2280	4000
Weight (KGS)	49	91	158
