NMRV Worm Gear Reducer with Aluminum Alloy Housing, Hardened Worm Shaft, and 0.06~22kw Power Range

Brand Name:	EVERGEAR
Model Number:	NMRV025~NMRV150
MOQ:	1
Price:	$39
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	99999999

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001,ISO14001,ISO24001,CE

Power Range:

0.06~22kw

Ratio:

7.5,10,15,20,30,40,50,60,80,100 Combined Reducer Ratio:300,400,500,600,750,900,1200,1500,1800,2400,3000,3200

Output Speed:

0.4~186.7rpm

Output Torque:

2.6~1760 Nm

Input Speed:

750rpm,1000rpm,1500rpm,1800rpm.

Output Shaft Diameter:

18mm-50mm

Reduction Stage:

Single Transmission Stage

Accessory:

Single Or Double Output Shaft, Output Flange, Torque Arm, Extension Worm Shaft

Mounting Way:

B3, B8, V5, B6, B7, V6

Weight:

1.2KGS-84KGS

Color:

Blue Or Silver

Packaging Details:

Cartoon or wooden cases

Highlight:

Aluminum alloy housing worm gear reducer

Hardened worm shaft RV worm gearbox

0.06~22kw power range NMRV reducer

Product Description

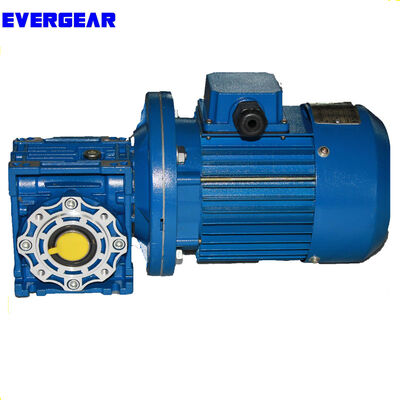

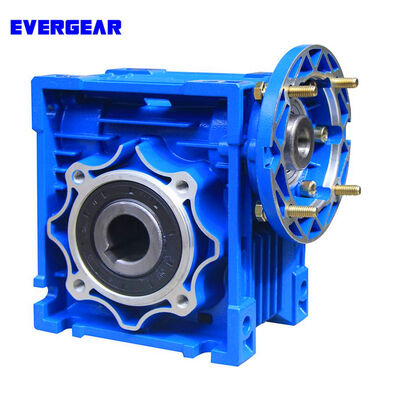

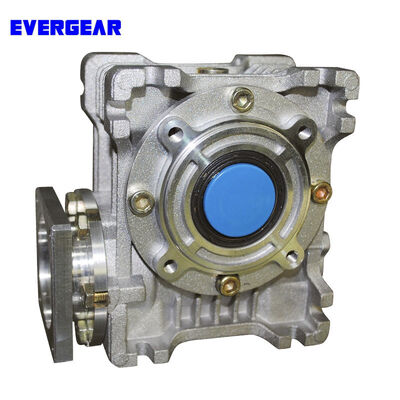

NMRV Worm Gear Reducer

Product Overview

High-performance worm gear reducer designed for industrial applications requiring reliable power transmission and torque conversion.

Available Models

RV25, RV30, RV40, RV50, RV63, RV75, RV90, RV110, RV130, RV150
NMRV30, NMRV40, NMRV50, NMRV63, NMRV75, NMRV90, NMRV110, NMRV130, NMRV150
NRV25, NRV30, NRV40, NRV50, NRV63, NRV75, NRV90, NRV110, NRV130, NRV150

Key Advantages

High-quality die-cast aluminum alloy housing for universal mounting applications
Hardened worm with fine grinding for higher efficiency and increased output torque
Low noise operation and stable running performance in demanding environments
Lightweight construction with high mechanical strength

Technical Specifications

Model	Shaft Dia. (mm) Solid(h6)	Shaft Dia. (mm) Hollow(h7)	Center Height (mm)	Output Flange Dia. (mm)	Power (kw)	Ratio	Permitted Torque (Nm)	Weight (KGS)
NMRV030	14	14	40	80	0.09~0.3	7.5~100	22	1.5
NMRV040	19	18/19	50	110	0.12~0.5	7.5~100	55	2.5
NMRV050	25	25	60	125	0.18~0.7	7.5~100	120	4
NMRV063	25	25	72	180	0.37~1.5	7.5~100	175	6
NMRV075	28	28	86	200	0.55~3	7.5~100	280	9
NMRV090	35	35	103	210	0.75~4	7.5~100	425	13.5
NMRV110	42	42	127.5	270	1.1~5.5	7.5~100	585	43
NMRV130	45	45	147.5	320	1.5~7.5	7.5~100	850	67
NMRV150	50	50	170	320	2.2~15	7.5~100	1500	100
