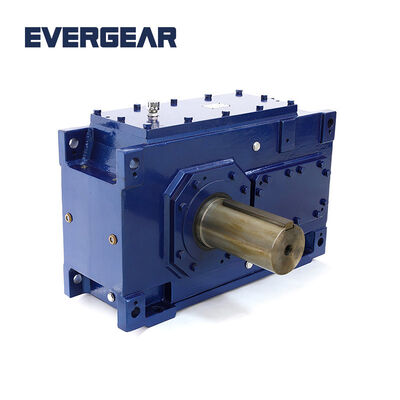

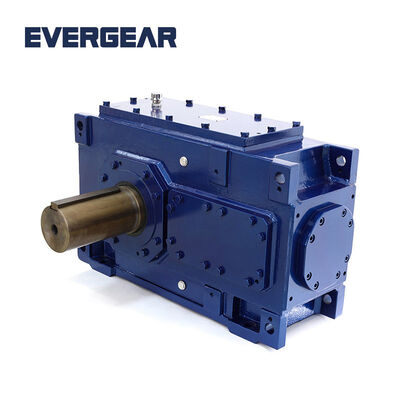

EH Series Modular Design Parallel Helical Gearbox with Progressive Ratio and Noise Reduction for Industrial Gear Drive

Name: EH Series Modular Design Parallel Helical Gearbox with Progressive Ratio and Noise Reduction for Industrial Gear Drive
Brand: ZHEJIANG EVERGEAR DRIVE CO.,LTD
SKU: EH3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26
Availability: InStock

Brand Name:	EVERGEAR
Model Number:	EH3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001,ISO14001,ISO24001,CE

Power Range:

4KW-4823KW

Ratio:

1.25 – 450

Output Speed:

1.7-1200rpm

Output Torque:

2-900KNm

Input Speed:

750rpm,1000rpm,1500rpm,1800rpm

Input Shaft Diameter:

30mm-140mm

Output Shaft Diameter:

80mm-420mm

Reduction Stage:

Two Transmission Stages, Three Transmission Stages, Four Transmission Stages

Mounting Way:

Foot Mounted, Shaft Mounted,shrink Disc,spline Shaft

Output Way:

Solid Shaft ,hollow Shaft, Hollow Shaft , Shrink Disk,spline Shaft

Weight:

190KGS-16500KGS

Oil Supply:

Dip Lubrication ,Forced Lubrication

Cooling Way:

Without Auxiliary Cooling, With Fan Cooling, With Cooling Coil, With Fan And Cooling Coil,with Water Cooling,with Gear Pump,with Electric Pump,with Fan Coolig,with Independent Fan Cooling

Ambient Temperature:

-40.00 [°C] ~ +50 [°C]

Direction Of Rotation Of Gear Output Shaft:

CW Rotation Or CCW

Corrosion Protection:

Conservation Acc. To Norm C1,C2,C3,C4,C5

Coating System:

Standard Coating, Finishing Coat, For All Climatic Zones

Color:

Blue RAL5010 /Grey RAL7031 Or Any Color You Need

Gear Arrangement:

Helical Gear ,Bevel Gear

Backstop:

Can Be Mounted With Backstop If You Request

Highlight:

Modular Design Helical Gearbox

Progressive Ratio Industrial Gear Drive

Noise Reduction Parallel Gearbox

Product Description

EH Series Parallel Helical Industrial Gearbox

High-performance parallel helical gearbox designed for demanding industrial applications with superior reliability and efficiency.

Available Model Sizes

3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26

Key Advantages

Modular design system enabling multi-purpose use of housing and internal components
Progressive ratio of sizes for optimum selection and performance matching
Improved noise reduction through ground bevel gear teeth and noise-absorbing housings

Helical Industrial Gear Unit Models
